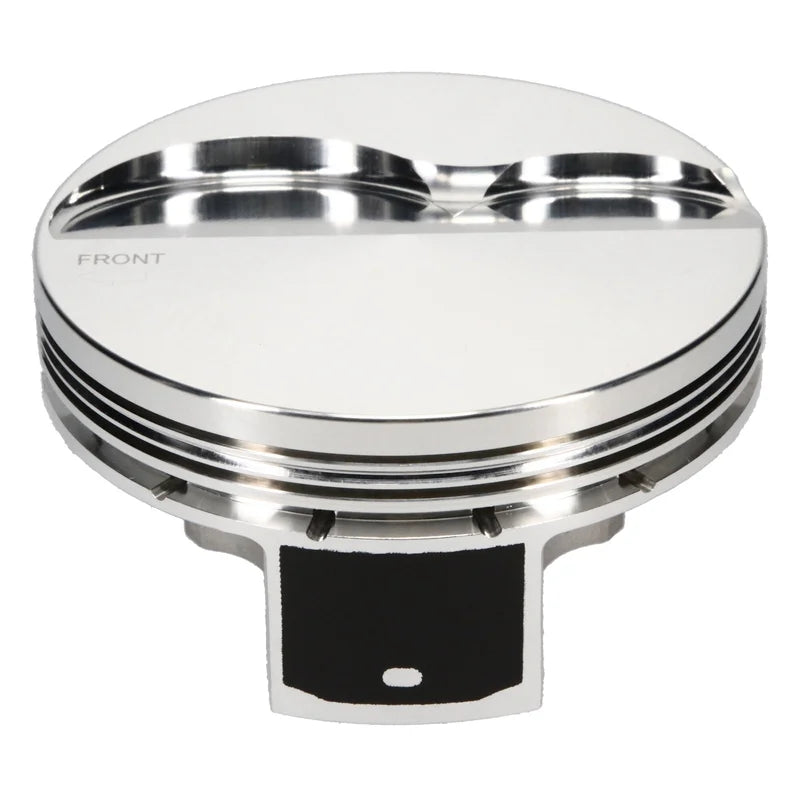

JE Pistons Chevrolet 4.130 in. Bore Right 311904R

Description JE Pistons asymmetrical FSR (Forged Side Relief) piston line incorporates modern forging design with a larger skirt on the major thrust side and smaller, friction-reducing skirt on the minor thrust side. Combined with precision CNC machining, the result is a high-strength, lightweight piston that is extremely durable. Attributes GTIN: 00193564209283 Brand Name: JE Pistons Add-On: JG31F8-4135-2 Add-On: 927-2250-15-51C Add-On: 927-073-MW Bore Diameter: 4.130 Compression Height: 1.163 Cylinder Head: GM LS7 / LSX 12 DEG Engine: CHEVROLET LS7 Forging Type: FSR Industry: Automotive Make: CHEVROLET Oil Ring Thickness: 0.1175.

Out of Stock Message: Call for Availability Piston Avg Wt: 435 Piston Head Type: Flat Piston Material: 2618 Piston Pin Length: 2.250 Piston Pin Material: 5115 Piston Pin Outside Diameter: 0.927 Piston Pin Wall Thickness: 0.150 Piston Volume: -2 Product Market: Domestic Ringset Included: No Second Compression Ring Thickness: 0.06 Top Compression Ring Thickness: 0.048 Extended Information Country of Origin: United States Life Cycle Status: Available To Order Emissions : Electronically Announced Packing Information Quantity of Each: 1 Package UOM: EA Dimension: 5.00 x 5.00 x 5.00 inches Weight: 1.3 lb.
