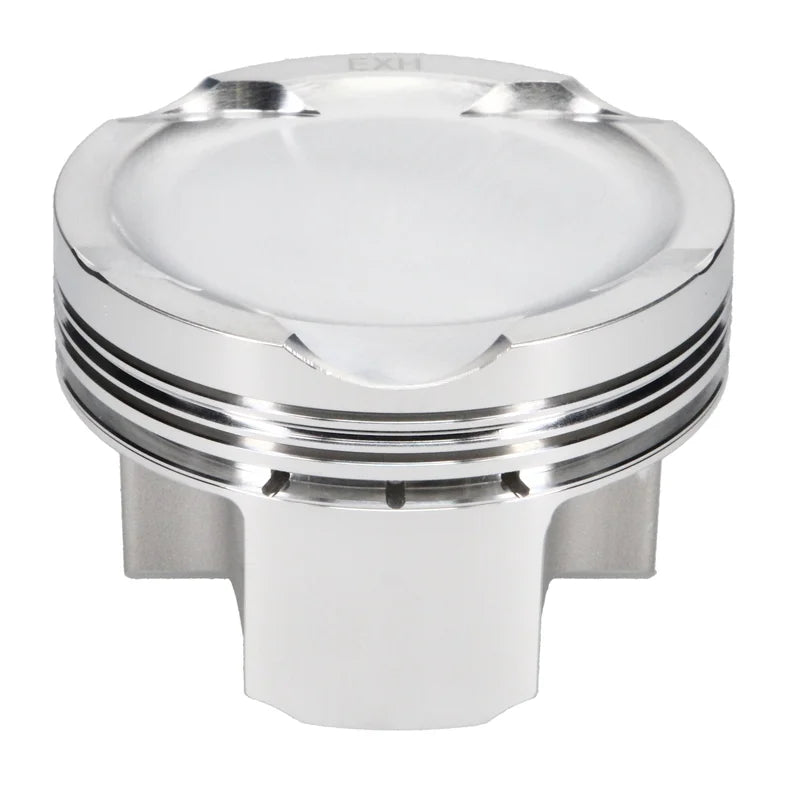

JE Pistons VW 3.268 in. Bore Single 302028S

Description JE Pistons is the leader in forged racing pistons. With 70-plus years of experience, in-house forging, and industry-leading technology, JE Pistons are designed to perform at the top levels of all forms of motorsports. Attributes GTIN: 00193564012579 Brand Name: JE Pistons Oil Ring Thickness: 0.111 Out of Stock Message: Call for Availability Piston Avg Wt: 292 Piston Head Type: Dish Piston Material: 2618 Piston Pin Length: 2.250 Piston Pin Material: 5115 Piston Pin Outside Diameter: 0.787 Piston Pin Wall Thickness: 0.180 Piston Volume: -13.4 Product Market: Sport Compact Ringset Included: Yes.

Second Compression Ring Thickness: 0.048 Top Compression Ring Thickness: 0.04 Add-On: JG1001-3268 Add-On: 787-2250-18-51C Add-On: 787-050-MW Bore Diameter: 83.00 Compression Height: 1.291 Cylinder Head: 1.8T APH Engine: 1.8T 20V 20MM PIN Forging Type: FSR Industry: Automotive Make: VOLKSWAGEN Extended Information Country of Origin: United States Emissions : Electronically Announced Life Cycle Status: Available To Order Packing Information Quantity of Each: 1 Package UOM: EA Dimension: 5.00 x 5.00 x 5.00 inches Weight: 1.3 lb.
